西门子1200PLC学习笔记(36)smart

  • 2026-06-02 00:29:29
西门子1200PLC学习笔记(36)smart

19、选择单极20%偏移量。下限5530，上限27648.回路设定值，下限0.0上限200

20、输出（本项目选用模拟量）单极20%偏移量，下限5530，上限27648.

21、报警0.3,0.7随时可以更改

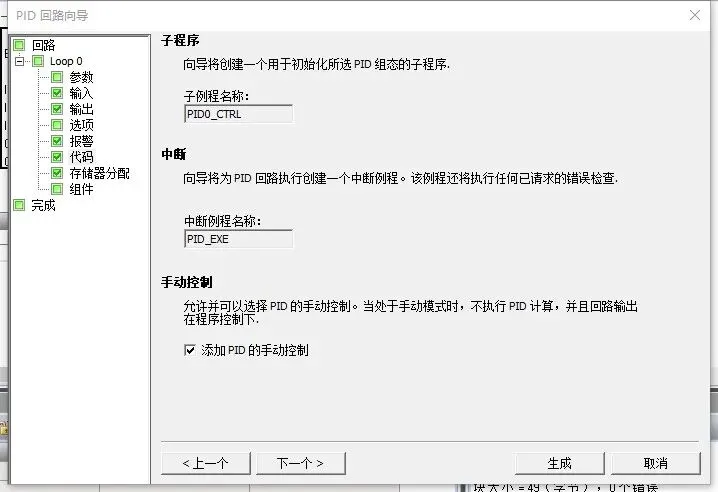

22、添加手动控制

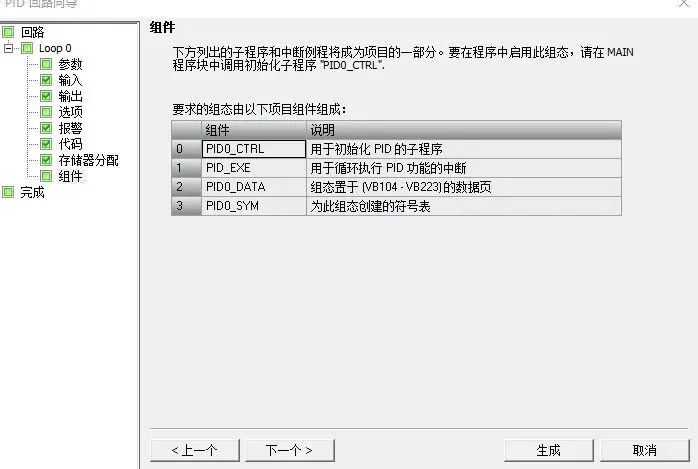

23、组件用建议方案保持数据一定要把VB104到VB223设计进去。其他回路也要保持

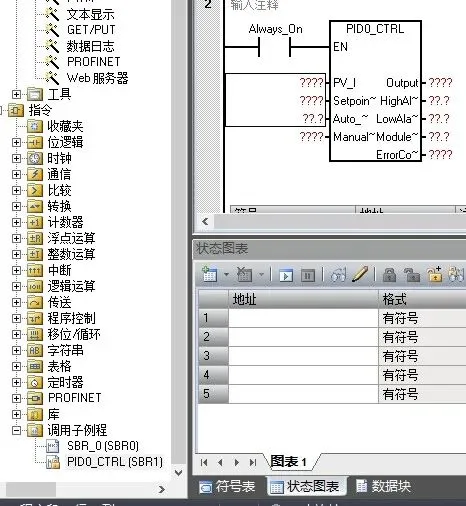

24、生成后通过调用子历程调用PID0_CTRL

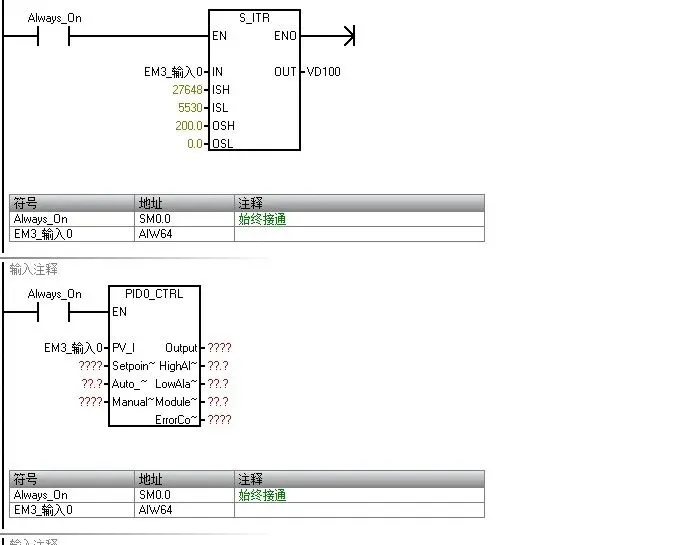

25、AIW16改为EM3_输入0,上边 S_ITR一并改

VD是双字变量存储器

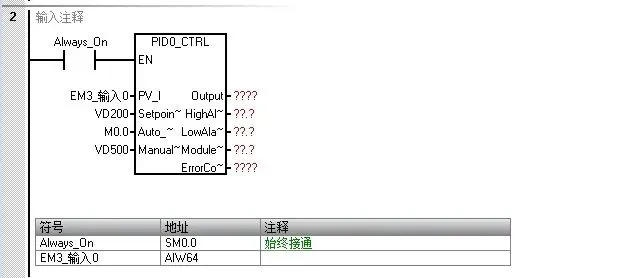

26、设置设定值，手自动切换，和手动输入
