ABAQUS学习笔记(二):后处理的特定路径提取绘制曲线图

  • 2026-06-01 17:33:01
ABAQUS学习笔记(二):后处理的特定路径提取绘制曲线图

可以帮您解决

abaqus仿真分析，abaqus不收敛，abaqus模型调试

abaqus:土木工程，abaqus岩土，abaqus基坑，abaqus隧道

abaqus有限元仿真静态、动态、流固耦合，温度模拟皆可

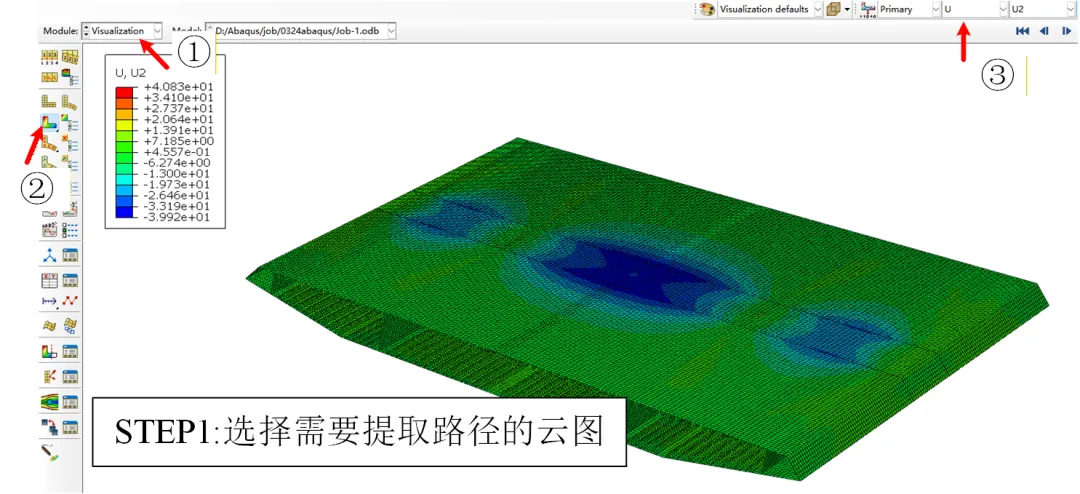

步骤一：进入后处理板块选择需要提取路径的云图类型，提应力就选择应力对应分量的云图，提位移就选择位移对应分量的云图。路径定义只跟模型网格有关，跟这里云图类型无关，但是绘制XY图时会直接绘制当前云图响应，这里提前选好能避免画错。

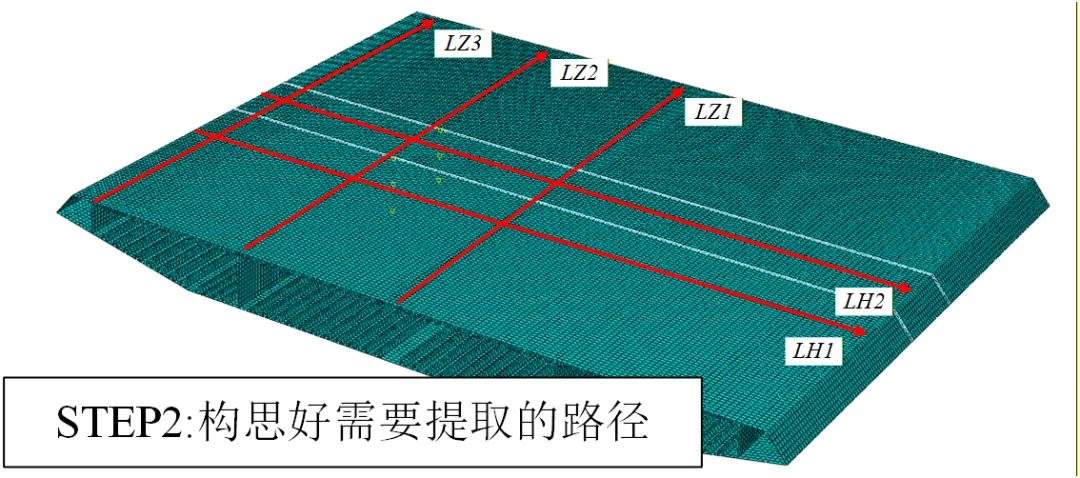

步骤二：构思好所需提取的路径，最好提前作图并命名。

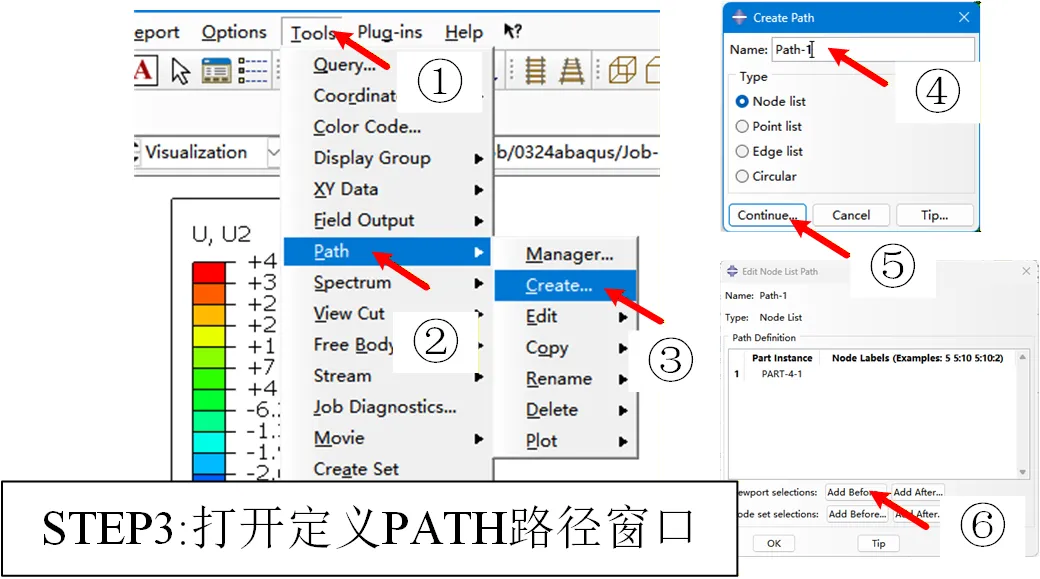

步骤三：按顺序选择进入路径PATH定义板块。

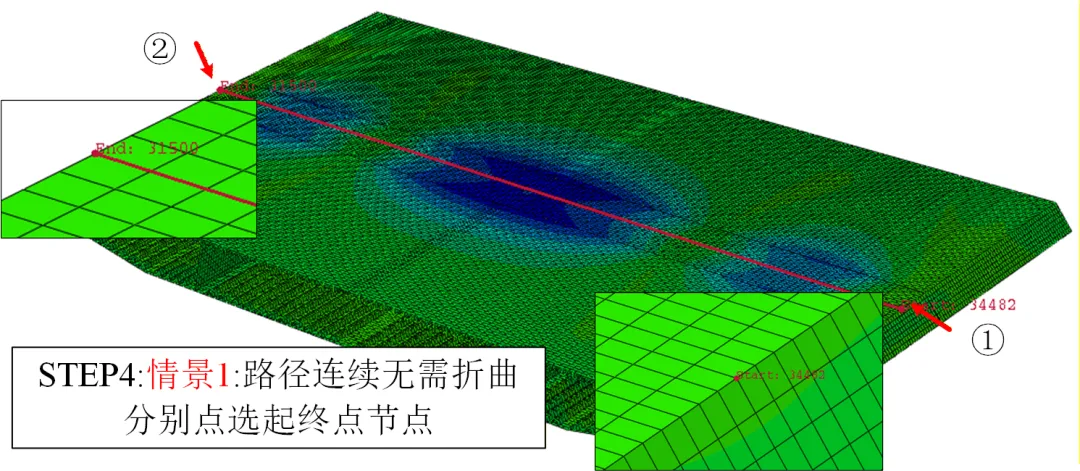

步骤四：情景1：路径无需折曲的情景，分别点选起终点节点，回车确定

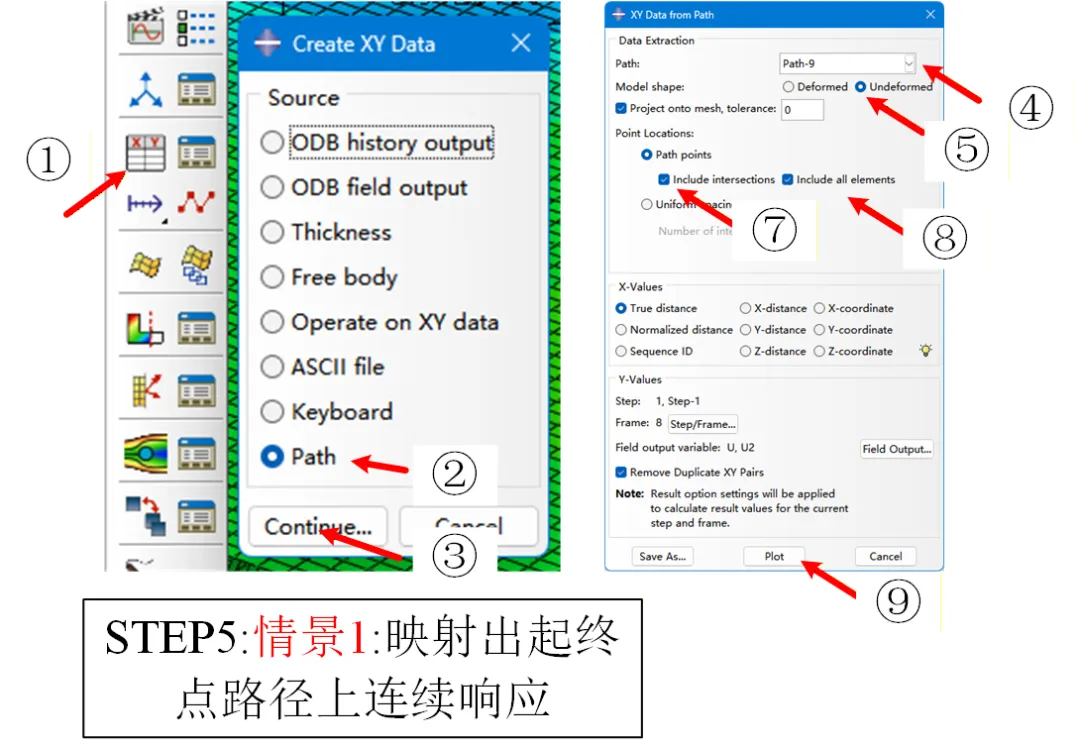

步骤五：情景1：映射出起终点路径上的连续响应

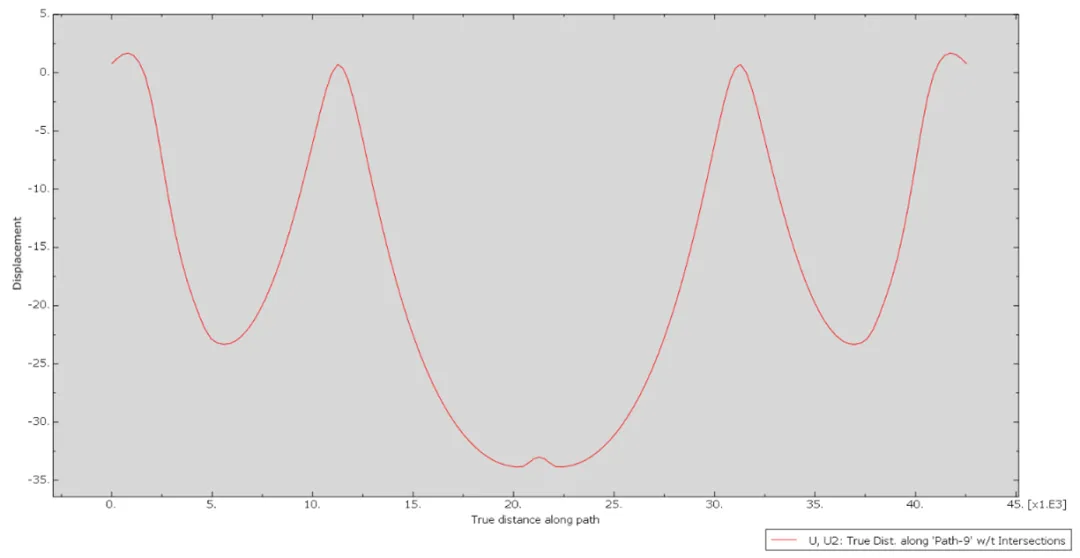

步骤六：情景1：获得绘制的连续位移图

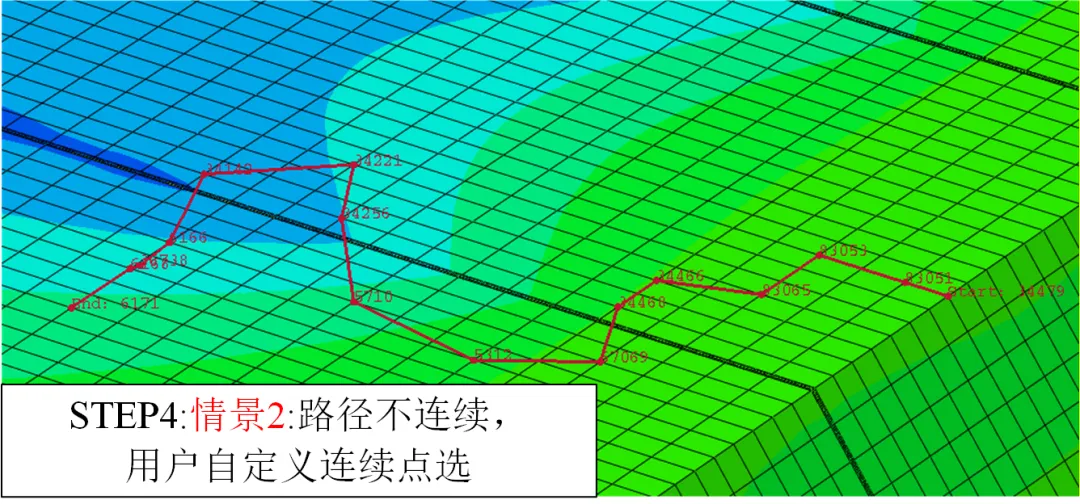

步骤四：情景2：路径不连续，用户自定义连续点选，回车确认

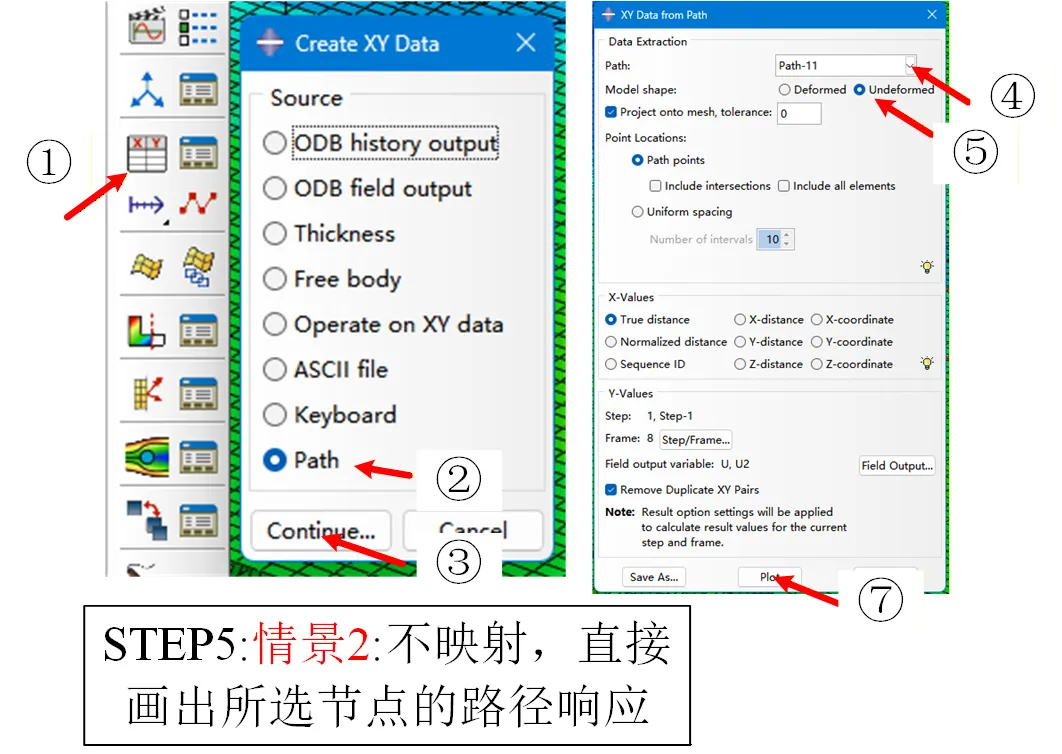

步骤五：情景2：不映射，直接画出所选节点的路径响应

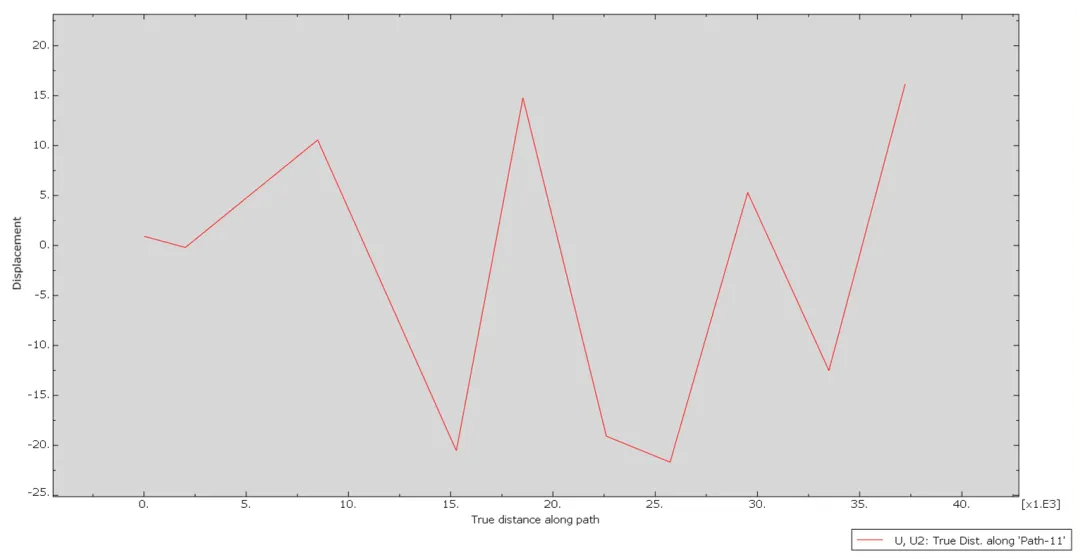

步骤六：情景2：获得绘制的非连续位移图
