Cadence Allegro入门学习笔记02

  • 2026-05-20 16:43:30
Cadence Allegro入门学习笔记02

课程Part03：21~48原理图的绘制常用操作，进度48/160=30%

P21--原理图页的大小自定义设置
P22--原理图绘制格点的调整与推荐设置
options--preferences
P23--原理图页模板的创建与应用
颜色与主题、title block
P24--如何在原理图中放置元件属性设置
1、放置元器件：place--part ,快捷键为P
2、添加库--双击元件
P25--元件在原理图中的选择、移动、旋转及镜像
旋转--快捷键R(Edit--Rotate)、
镜像--快捷键H、V
P26--元件在原理图中的复制、剪贴、粘贴。
CTRL+C、ctrl+V
按住CTRL直接拖拽
P27--元件在原理图中的排列与对齐
EDIT--Align
P28--元件链接导线及导线设置。
place--wire 快捷键为W、右键end Wire结束命令
P29--元件放置网络标签链接。

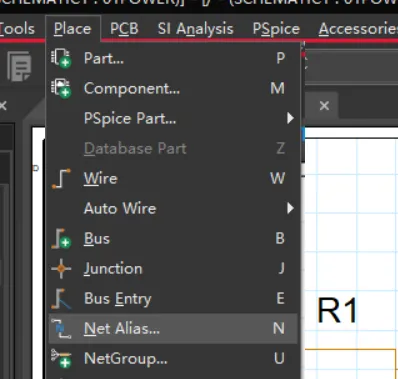

place--NET label 、快捷键为N
P30--页连接符的说明及使用方法。

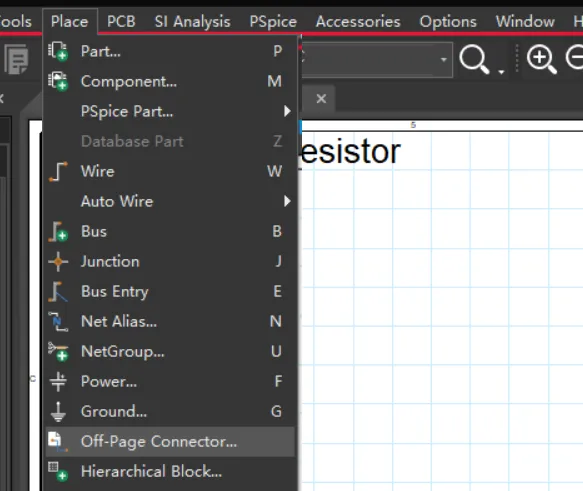

多图纸功能place--off-page Connector
P31--原理图中总线的应用与放置。
place--BUS、快捷键为B

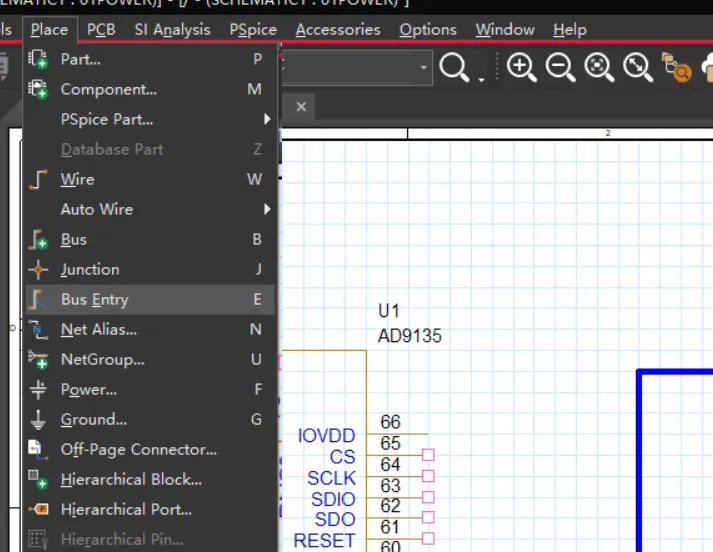

PLlace-bus entry
P32--原理图中网络差分标示的放置。
tools--create Differential pair
P33--非电器对象的放置（辅助线、文字、注释）。
文字--快捷键T--place text
辅助线--shift+L--PLACE LINE
P34--元件的位号重新编号。

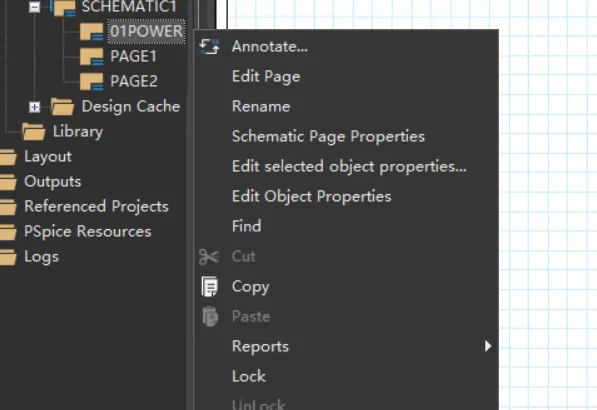

1、清除原来的编号，tools--annotate
2、重新编排，tools--annotate
P35--元件封装属性的添加与显示。
P36--不同页面之间页码符号的添加与删除。
P37--原理图中元件的编辑与更新。
P38--快速实现原理图元件的跳转与查找。
查找：Edit--Find，快捷键为Ctrl+F
P39--原理图的常见错误与编译检查。
P40--低版本的原理图文件输出。
Save As 16.2的版本
P41--原理图文件的锁定与解锁。
lock锁定
P42--orcd与allegro软件交互布局设置
P43--两份原理图文件的对比设置
tools--compare designs
P44--物料BOM表的设置与导出
tools--bill of materials
添加封装名字\tPCB Footprint
P45--原理图文件的PDF打印输出。
1、export--PDF(安装插件）gswin.exe
2、虚拟打印机
P46--原理图的网表输出与错误解析。
第一方网表PCB，
P47--层次原理图的概念与设计讲解。

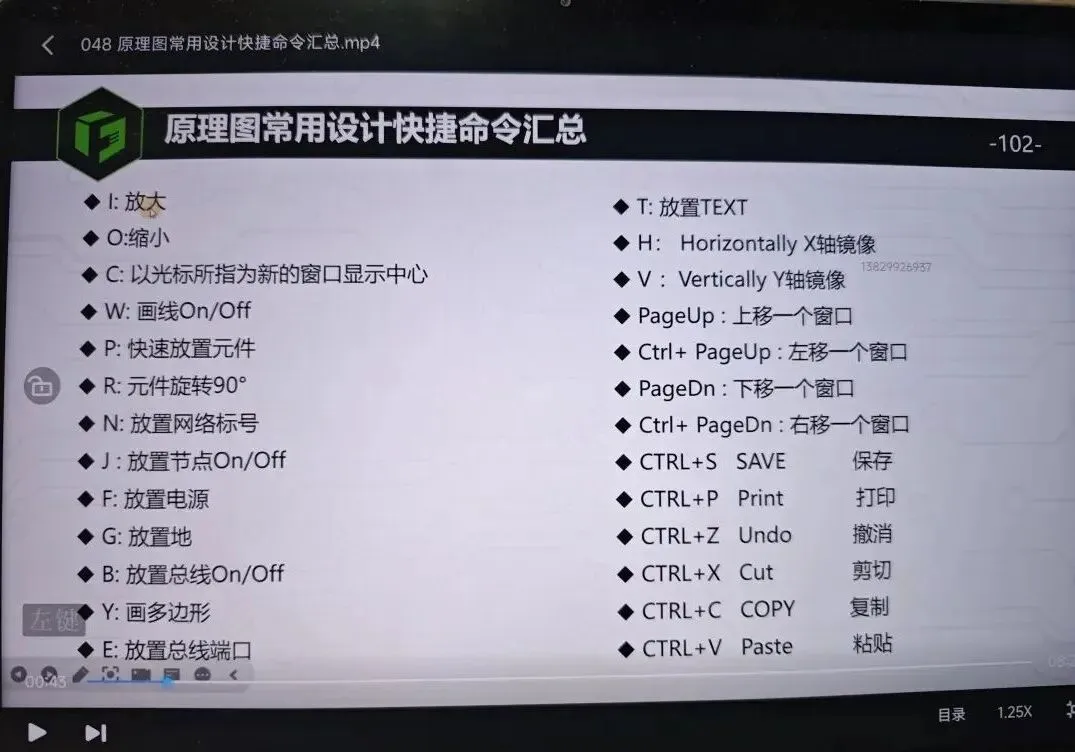

P48--原理图常用设计快捷键汇总。
