材料力学学习笔记(七)圆轴扭转(下)

  • 2026-04-18 02:06:40
材料力学学习笔记(七)圆轴扭转(下)
一、圆轴扭转时的变形

轴的扭转变形，用横截面间绕轴线的相对角位移，即扭转角φ表示。

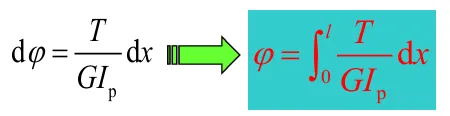

在前面推导扭转切应力时，我们得到：

即：

对于等截面圆轴，且T为常数，则有：

上式表明，扭转角φ与扭矩T、轴长l成正比，与乘积GIP成反比。乘积GIP称为圆轴截面扭转刚度。

二、圆轴扭转的刚度条件

在工程实际中，通常限制扭转角沿轴线的变化率dφ/dx或单位长度扭转角，使其不超过规定的许用值[θ]，即许用扭转角。

设单位长度的扭转角为θ，则有：
所以，圆轴扭转刚度条件为：

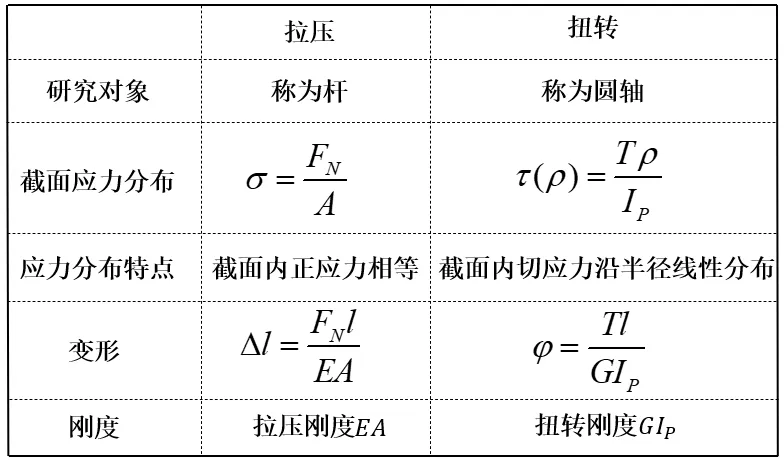

三、拉压、扭转对比
拉压、扭转分析对比如下：

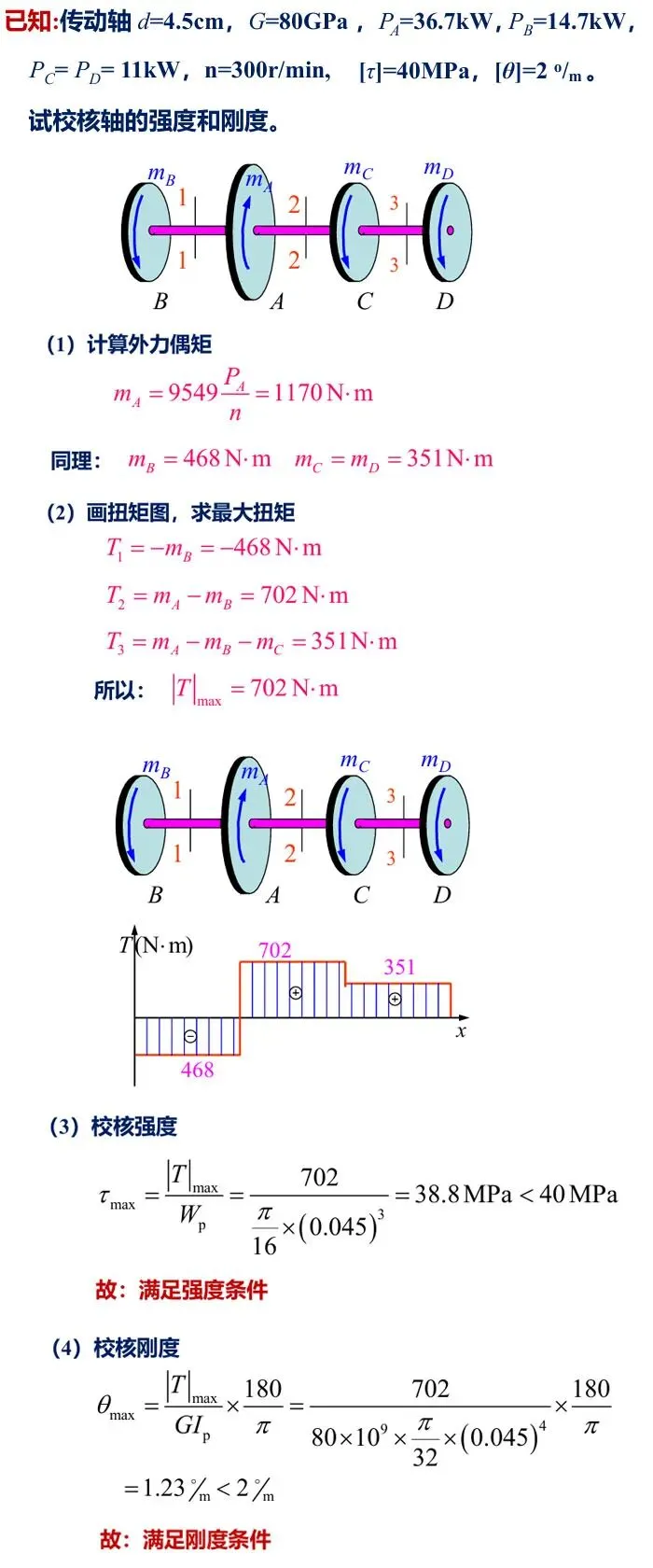

四、实例
