电源学习笔记:电容的应用

  • 2026-03-28 11:59:22
电源学习笔记:电容的应用
电源学习笔记：开关电源中电容的应用。2026/3/26
一、 电容的基础特性
电容是电源电路中“稳定电压、补充电流、抑制干扰”的核心元件。其关键特性为：
通交流，阻直流：用于滤波、耦合、旁路。
通高频，阻低频：频率越高，容抗越低，高频噪声通过电容流入地。
二、 电源电路中电容的分类与应用
1. 输入电容
    • 核心作用：为开关管（如Buck电路上管）提供瞬态大电流。当开关管高速通断时，电源无法瞬时响应，输入电容作为本地储能，避免电源电压波动。
    • 关键细节：必须紧靠开关管放置，缩短走线以降低寄生电感，保证电流快速传输。
2. 输出电容
    • 核心作用：抑制纹波：通过充放电平滑高频波动。
    • 动态负载响应：当负载电流突变时（如从轻载切至重载），快速释放能量，防止输出电压跌落。
    • 价值：兼顾稳态纹波抑制与瞬态动态响应。
3. 自举电容
为高端MOSFET提供高于VCC的驱动电压，确保其完全导通（若电容失效，高端MOS无法工作）。其工作原理是基于电容两端电压不能突变。
    • 充电：低端MOS导通时，电容充电至VCC。
    • 保持：低端MOS关断，电容两端电压保持稳定。
    • 升压：高端MOS需导通时，电容电压叠加在源极电压上，使栅极电压高于源极，实现可靠驱动。
三、 关键设计细节
1. 去耦电容（高频噪声抑制）
    • 类型：优先选用陶瓷电容（MLCC），寄生电感小，高频特性优。
    • 频率：电容的自谐振频率必须高于电路中的最高信号频率，并留足余量（常规3~10倍）。例如，5MHz信号可选自谐振频率≥15MHz的电容。
    • 布局：贴近负载，紧邻芯片电源引脚或关键节点，缩短引线，短回路，接地端直接连至地平面，形成低阻抗回路，快速泄放噪声。

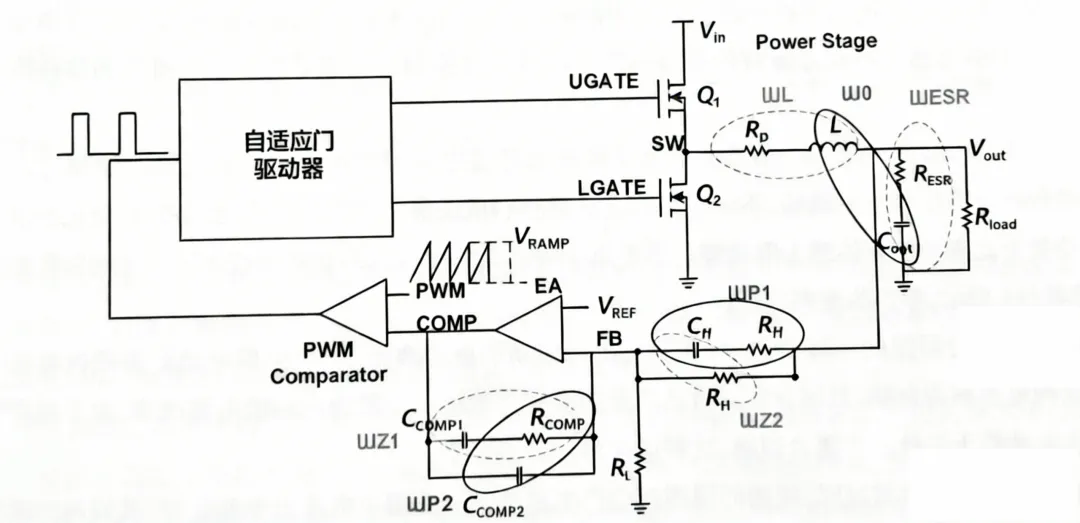

2. 环路补偿电路中的应用
    • 极点补偿：引入低频极点，提前降低高频增益，确保增益在相位交叉前衰减至1以下，避免自激振荡（如运放反馈端的补偿电容）。
    • 零点补偿：通过RC串联网络引入零点，抵消电路中的高频极点，提升相位裕度，拓宽稳定带宽（常用于开关电源控制环路）。
四、 易忽略的薄弱点
    • 故障根源：很多电源故障源于电容的选型或布局不当。
    • 选型原则：需结合电路实际工况（开关频率、负载变化率、工作温度）匹配参数，避免仅凭“经验值”选用。
    • 高频布局：在PCB信号频率达200MHz~400MHz时，去耦电容的布局对抑制电磁干扰（EMI）至关重要。
五、相关的英文词汇
    • Bootstrap Capacitor ： 自举电容
    • Decoupling Capacitor ： 去耦电容
    • Self-Resonant Frequency (SRF) ： 自谐振频率
    • Dynamic Load Response ： 动态负载响应
    • Loop Compensation ： 环路补充
    • Parasitic Inductance ：寄生电感
