硬件电路设计学习笔记--MOS管做电源开关

  • 2026-05-24 13:50:28
硬件电路设计学习笔记--MOS管做电源开关

一、Nmos做 电源 开关

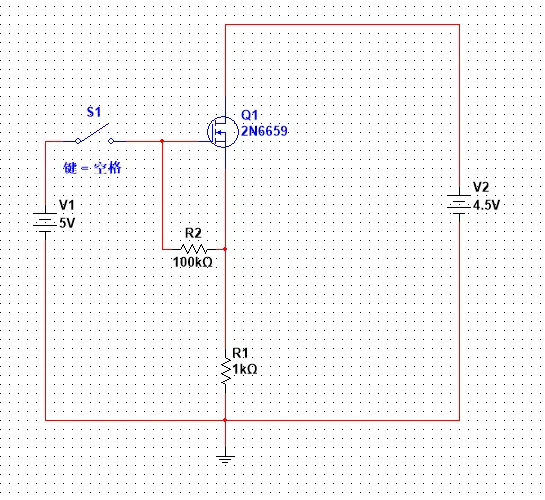

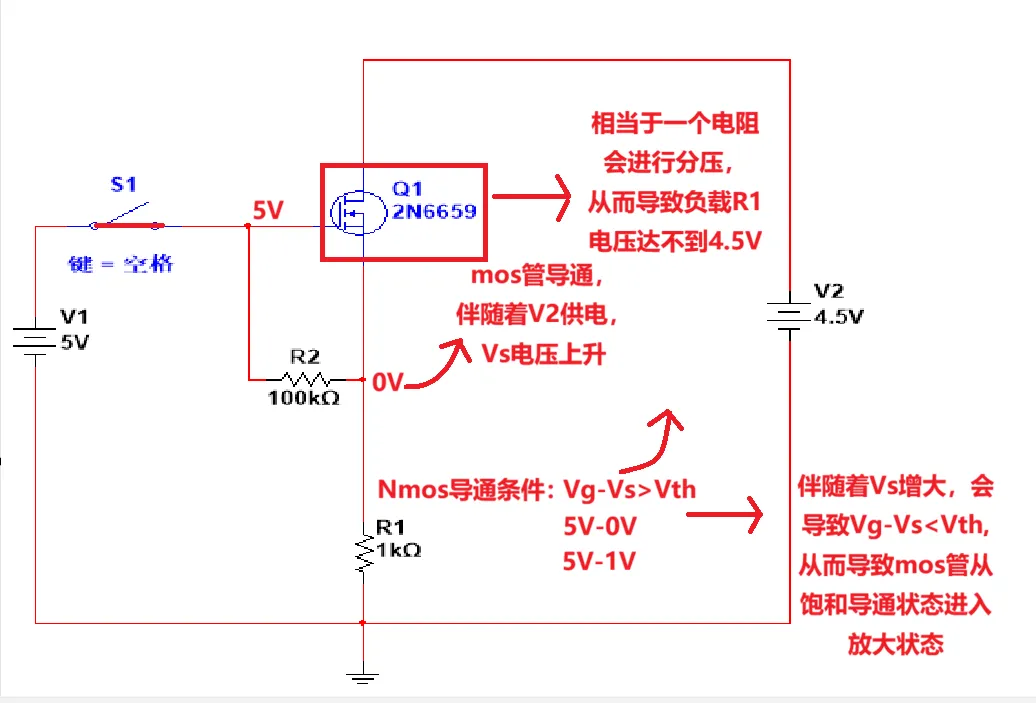

电路分析

仿真 效果验证

开关未闭合

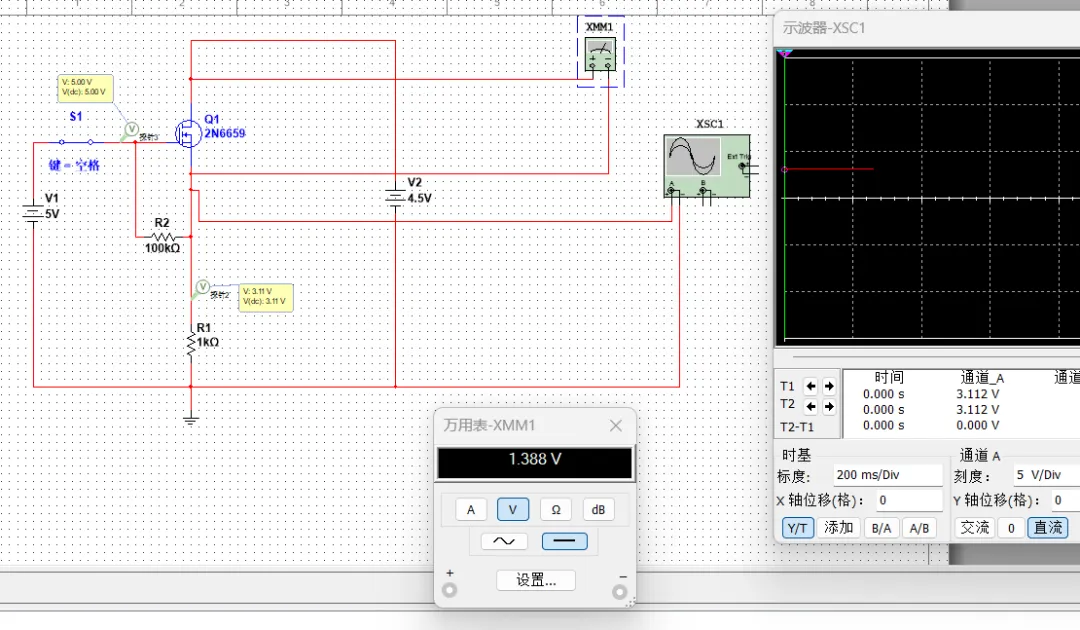

开关闭合

如何让其处于一直饱和导通？

  • 使用自举电容
  • 使用一个比电源更高的控制信号来控制mos管的栅极g这里主要讲使用自举电容

使用 自举电容

利用电容两端电压不能突变的特性

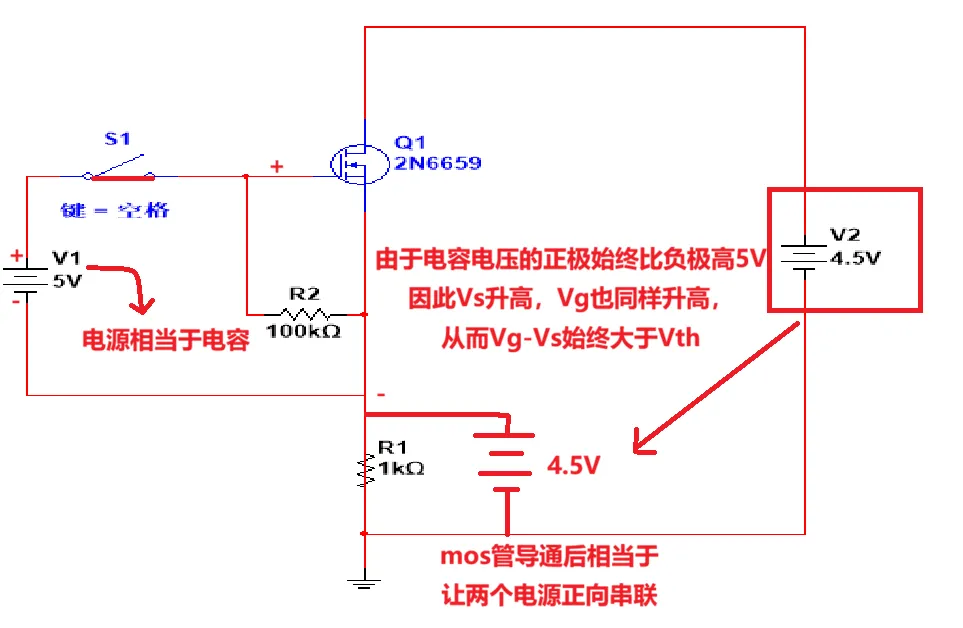

电路分析

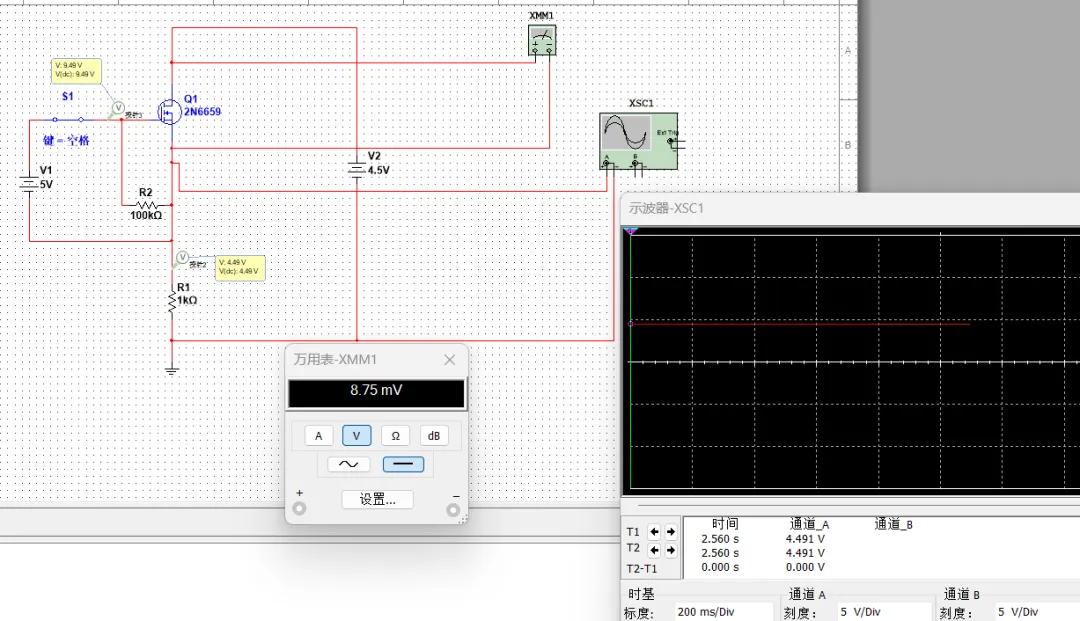

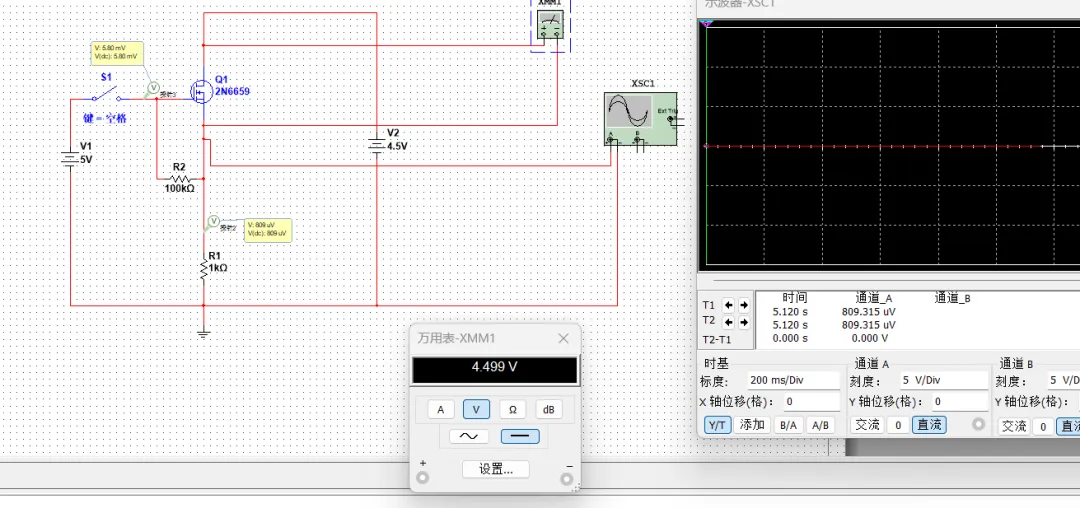

仿真效果验证

二、Pmos做电源开关

利用Pmos源极s接电源的特性导通条件:Vg-Vs<Vth

仿真效果

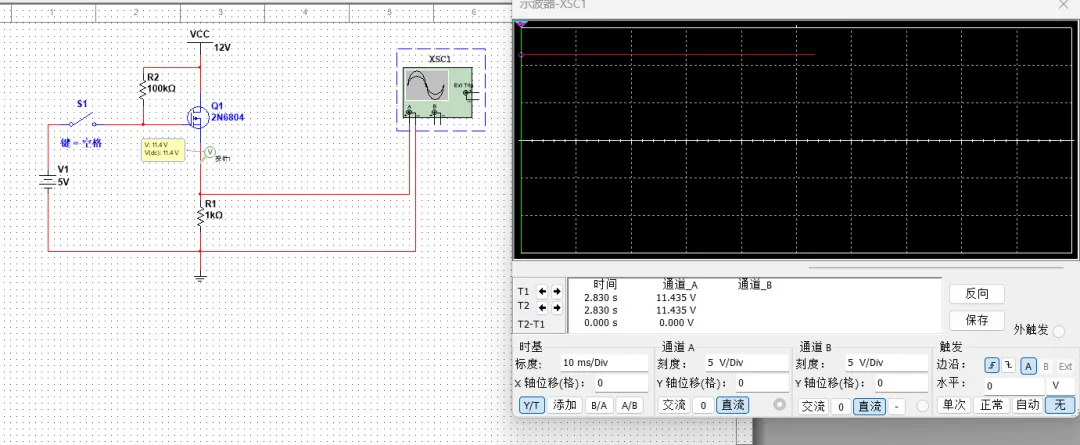

开关未闭合

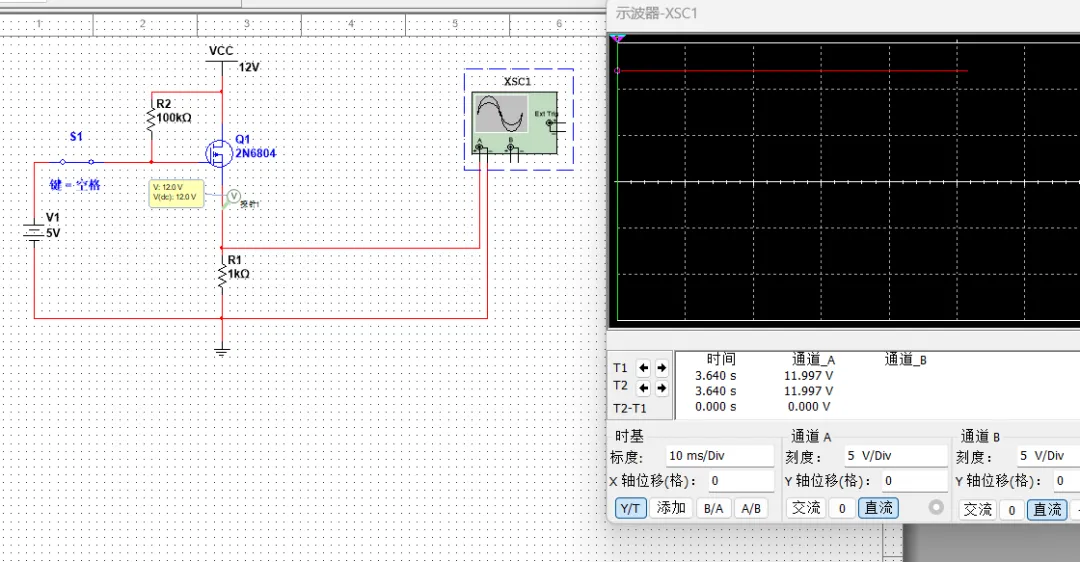

开关闭合
